Modern vehicle and industrial systems – especially turbocharged engines, forced induction setups and vacuum brake systems – create extreme boost and vacuum conditions that push standard silicone hoseto its limits. Boost pressure forces automotive silicone hoses to expand outward, leading to bulging, cracking and poor seal integrity over time. On the flip side, strong vacuum pulls hoses inward, causing collapse that blocks air and fluid flow. Frequent, rapid pressure changes only speed up ageing and failure for non-reinforced silicone automotive hoses, leading to system malfunctions and costly downtime.
This is why reinforced silicone hose is non-negotiable for high-pressure and high-vacuum applications. It solves the core problem of structural stability under extreme pressure shifts, making it an essential component for turbocharger systems, intake lines, vacuum brake setups and more.
2.1 Virgin Silicone Forming for Inner & Outer Layers
We use 100% virgin silicone raw materials (no recycled material) for the inner and outer layers of all our silicone hose products. This guarantees the base heat resistance, corrosion resistance and flexibility of the hose, laying a solid foundation for boost and vacuum protection – critical for silicone coolant hose and silicone radiator hose in constant contact with coolant.
2.2 3-4 Ply Reinforcement Spiral Braiding
Our reinforcement layers are woven in a tight spiral pattern that fits perfectly against the inner silicone layer. This even distribution of force disperses the outward tension from boost pressure and the inward suction from vacuum, preventing local stress concentration that causes bulging, collapse or deformation in standard hoses.
2.3 Integrated Vulcanization Bonding
The reinforcement layers and silicone layers are bonded together through high-temperature integrated vulcanization. This creates a seamless, one-piece structure with no delamination risk. Even under 10,000+ cycles of rapid boost and vacuum changes, the layers stay firmly attached, avoiding cracking or separation that plagues poorly bonded hoses.
2.4 Precision Dimension Control
We maintain an inner diameter tolerance of ±0.5mm and offer custom wall thickness options (4mm, 4.5mm, 5mm) for all reinforced automotive silicone hoses. This strict control ensures the inner diameter remains stable under boost and vacuum – no expansion or collapse to restrict air/fluid flow, which is essential for maintaining the efficiency of silicone intake hoseand silicone coolant hoses.
Every reinforced silicone hose in our product line is tailored to specific boost and vacuum scenarios, with clear compatibility for automotive, commercial vehicle and industrial applications. We match the right reinforcement and structure to your exact needs, with no unnecessary upgrades:

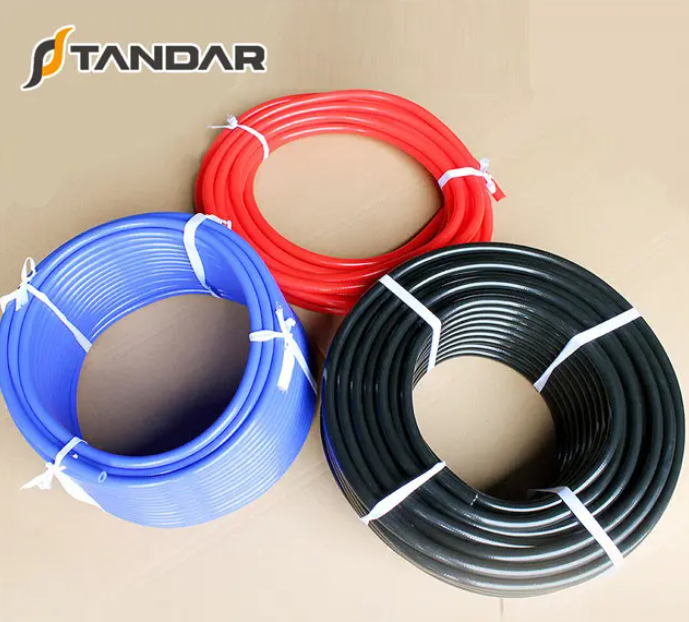

3.1 Heat Resistant Colorful Silicone Vacuum Hose
Our dedicated product for precision vacuum systems, with polyester/glass fiber reinforcement for anti-collapse and zero-leakage performance. It fits brake boosters, engine vacuum control and small-diameter vacuum lines, with a full inner diameter range of 2mm to 19mm – including the standard 5 8 silicone heater hose size for vehicle heating and vacuum lines. This automotive silicone vacuum hose maintains shape and seal integrity even under full vacuum (-0.1MPa), a must for safety-critical brake systems.
3.2 15 Degree Silicone Elbows
Engineered for boost line corners in tight engine bays, with polyester/aramid fiber reinforcement to resist outward expansion from boost pressure. It is the perfect fit for turbocharger intercooler lines and silicone intake hose corners, with a full inner diameter range of 16mm to 76mm and precision centerline distances for a seamless fit in cramped spaces. This elbow hose eliminates the need for awkward bends in straight hoses, reducing pressure loss and collapse risk in boost lines.

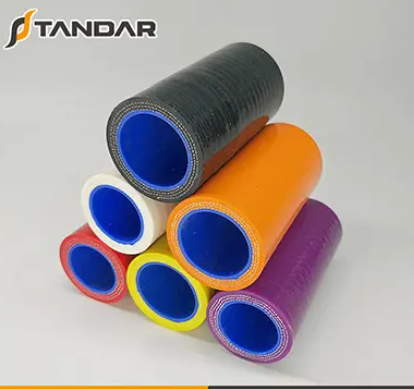

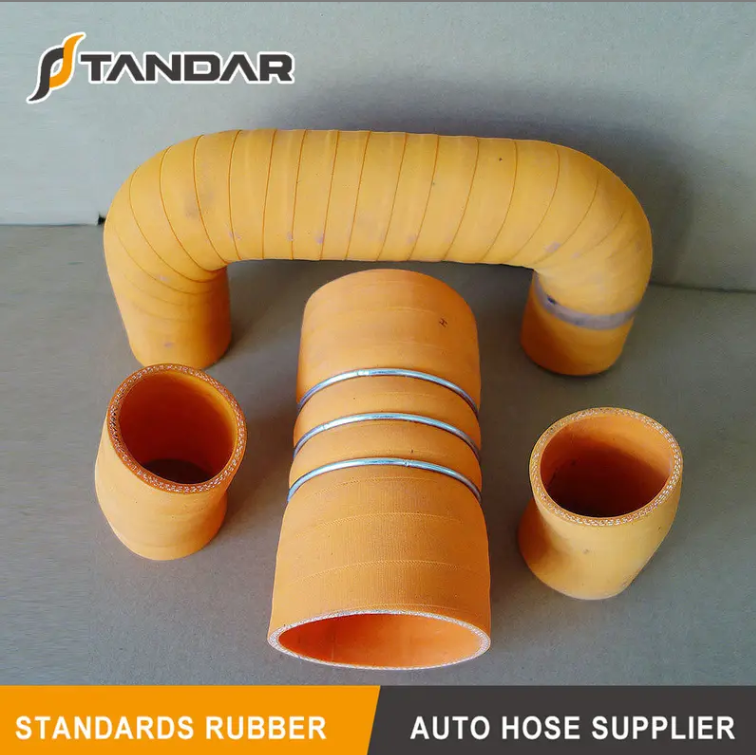

3.3 Custom Reinforced Silicone Coolant/Intake Hoses
Our heavy-duty solution for large-diameter boost cooling and intake lines in commercial vehicles and engineering machinery, with steel wire + aramid fiber double reinforcement. It is designed for high-load turbocharged systems, with custom length options from 1m to 10m (joints) to avoid leak points. This product excels at anti-vacuum collapse and anti-high-pressure bulging, making it ideal for silicone radiator hose and large-bore silicone intake hose in heavy-duty applications.
3.4 Fluorosilicone Lined Reinforced Hoses
Our specialized product for hydraulic boost systems, with a fluorosilicone liner + steel wire reinforcement structure. It resists hydraulic oil and brake fluid corrosion, with a burst pressure ≥1.2MPa that meets the SAE J20R3 industry standard. This hose is used for power steering and brake hydraulic lines, where boost pressure and oil exposure create the harshest working conditions for silicone automotive hoses.
4.1 Customized Reinforcement Solutions
We design reinforcement plans based on your exact boost pressure, vacuum level and operating temperature. We avoid over-engineering, matching the right material and ply count to your needs for the best cost-performance ratio – whether you need a basic polyester-reinforced 5 8 silicone heater hose or a high-end aramid-reinforced silicone intake hose.
4.2 Full Specification & Shape Coverage
We offer a complete range of reinforced silicone automotive hoses, from small-diameter automotive silicone vacuum hose (2mm ID) to large-diameter boost hoses (76mm+ ID). We stock straight hoses, 15 Degree Silicone Elbows (custom 45°/90° available), reducer hoses and hump hoses – covering every boost and vacuum line need for automotive, commercial vehicle and industrial use.
4.3 Fast Delivery & Free Sample Testing
Our standard reinforced silicone hose products (e.g., 5 8 silicone heater hose, standard silicone vacuum hose) ship within 48 hours. Custom products are delivered in 7-30 days, with our own production base ensuring fast lead times. We also provide 1-2 meters of free samples for all customers to test boost, vacuum and temperature performance before bulk orders – no risk, no guesswork.
