I. Materials: The "Fundamental Factor" Determining Hose Life, Comprehensive Analysis of Adaptation Logic for Different Scenarios
The material selection of automotive rubber hoses is by no means a one-size-fits-all standard, but needs to be accurately matched according to scenarios such as conveying medium, working temperature, and working condition intensity. Incorrect material selection is the primary cause of premature hose scrapping and increased procurement costs.

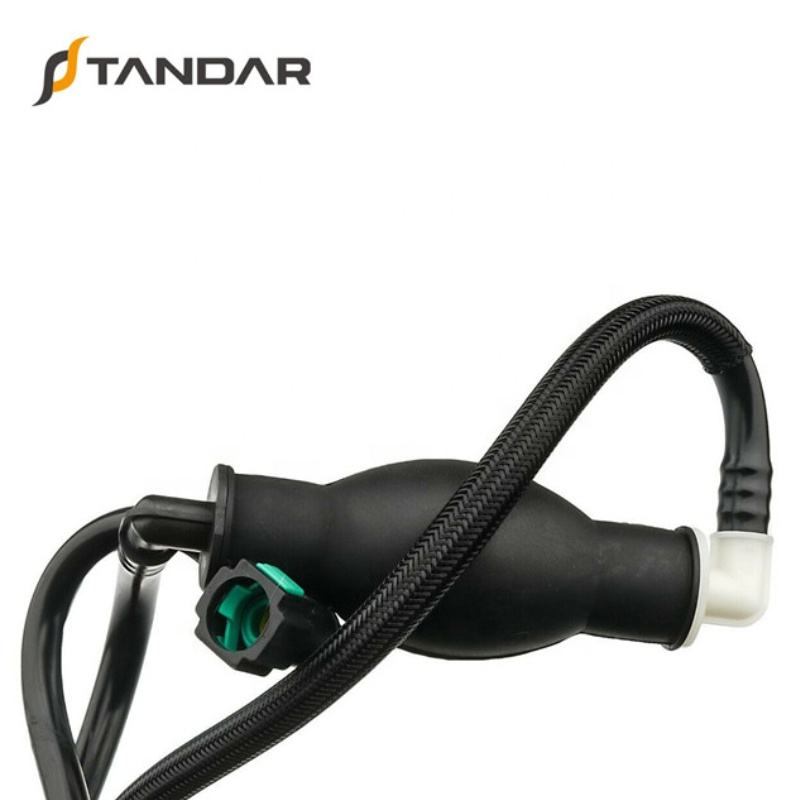

1. Fuel Hose: Corrosion Resistance is Core, Material Determines Safety and Service Life
Fuel hoses are in long-term contact with gasoline, diesel, and various fuel additives. Ordinary natural rubber materials will be corroded by fuel, resulting in swelling, bulging, cracking and other problems, with a service life of less than 1 year. High-quality fuel hoses choose special materialsaccording to fuel types: NBR nitrile rubber is used for conveying ordinary diesel/gasoline, with an acrylonitrile content of 33%-45%, and its fuel permeability resistance is 80% higher than that of natural rubber; FKM fluororubber is used for conveying biodiesel or high-sulfur fuel, which can resist corrosion from various chemical media and has a service life of 3-5 years.

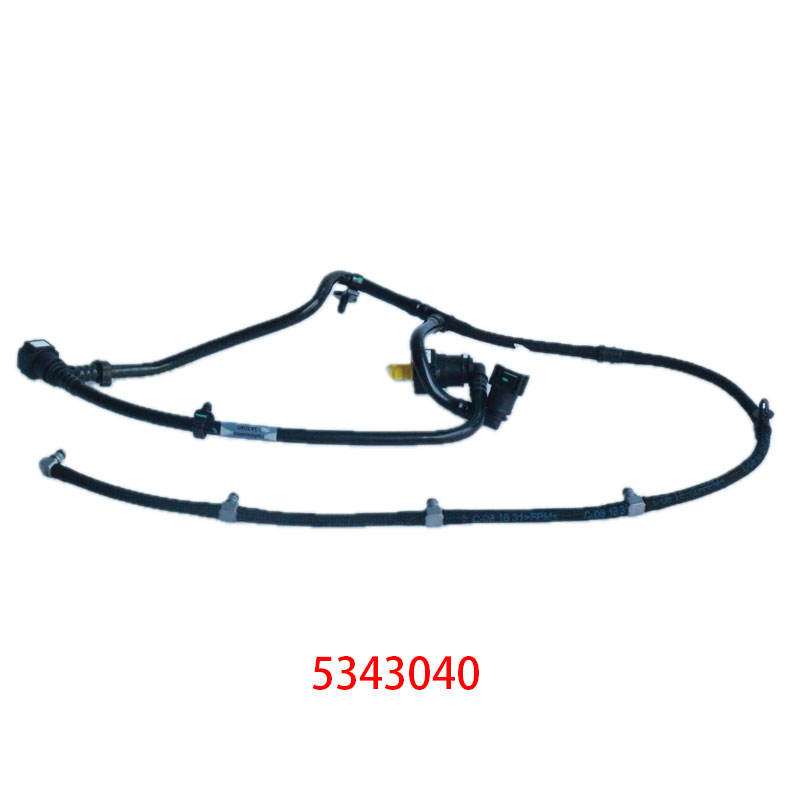

2. Leak Off Pipe: Reinforced Structure is Key, More Durable Against Vibration and Cracking
The core function of the leak off pipe is to discharge excess fuel from the engine and maintain stable fuel circuit pressure. Its working environment is accompanied by continuous vibration, so in addition to basic fuel resistance, tensile and vibration resistance are more important. High-quality leak off pipes adopt a three-layer structure of "rubber inner layer + fiber braided reinforcement layer + outer protection layer": the inner layer uses fuel-resistant rubber to ensure sealing, the middle layer of high-strength polyester fiber braided layer improves tensile strength (breaking strength ≥15MPa), and the outer layer uses wear-resistant rubber to resist external friction. Taking the Volvo-specific leak off pipe (OEM 21673746) of Standards Rubber as an example, after simulated engine vibration test, it vibrated continuously for 500,000 times at a frequency of 10Hz, with no cracks in the hose and no loosening at the interface. However, ordinary single-layer rubber leak off pipes showed obvious fatigue cracks after 150,000 vibrations.

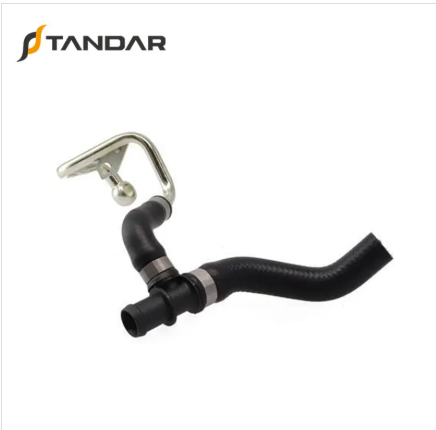

3. Water Inlet Hose: Low-Temperature and Freeze Resistance is Basic, Aging Resistance Determines Maintenance Cost
The water inlet hose is used in the engine cooling system and needs to work in an alternating high and low temperature environment of -40℃ to 120℃. At the same time, it is in contact with ethylene glycol and other components in the coolant, so it must have excellent low-temperature resistance and aging resistance.
4. Exhaust Hose: High-Temperature Resistance is Core Requirement, Double Guarantee of Material and Structure
The exhaust hose is directly connected to the engine exhaust manifold, and the temperature of the exhaust gas it contacts can reach above 150℃. The exhaust hose temperature of some heavy-duty trucks even exceeds 200℃, so high-temperature resistant materials must be used. The inner layer of high-quality exhaust hoses is made of silicone rubber (temperature resistance range -60℃ to 200℃), and the outer layer is wrapped with aluminum-plated steel wire braid, which not only enhances the heat insulation effect, but also reduces the impact of heat transfer on surrounding components. Ordinary exhaust hoses made of nitrile rubber will age and harden quickly in environments above 150℃ and need to be replaced within 3-6 months, while Standards Rubber's silicone rubber exhaust hoses can be used stably for more than 2 years under high-temperature working conditions of construction machinery.
II. Process
If materials are the "basic genes" of high-quality hoses, then production processes are the "key processes" that transform genes into actual performance. The same raw materials produced in factories with different process levels may have quality differences of several times, which is also an important reason for the difference in procurement costs.
1. Precision Molding: Dimensional Tolerance Controlled Within ±0.1mm to Ensure Adaptation Without Risk
The dimensional accuracy of automotive rubber hoses directly affects installation adaptability. If the interface diameter deviation exceeds 0.5mm, it may cause installation difficulties or poor sealing. High-quality factories use CNC precision mold molding, and replicate the original hose dimensions through 3D scanning technology, controlling the tolerance of key dimensions such as outer diameter, inner diameter, and interface thread within ±0.1mm. The fuel hose (OEM 474010052R) customized by Standards Rubber for Renaulthas a dimensional qualification rate of 99.8% per batch after third-party dimensional inspection, which can be directly installed as a replacement for original parts. Small factories mostly use simple molds made by manual mold opening, with dimensional deviations often exceeding 1mm, requiring buyers to perform additional processing before use, increasing time and labor costs.
2. Interface Processing: Integral Molding by Molding, Eliminating Leakage Hidden Dangers from the Source
80% of hose leaks occur at the interface. Ordinary factories use manual bonding for interfaces, and the glue is easily corroded by fuel and coolant, which may cause degumming and leakage after 3-6 months of use; high-quality factories adopt the process of "integral molding by molding + secondary reinforcement with sealant", seamlessly connecting the interface with the hose, and applying chemical corrosion-resistant silicone sealant at the interface to ensure zero leakage rate. The quick-connect leak off pipe (such as 6C1Q9K022AG) of Standards Rubber has passed a 30-minute pressure holding test at 1.5 times the working pressure (10MPa) with no leakage at the interface, while similar manually bonded products leak at 5MPa pressure.
3. Full-Process Quality Inspection: 9 Inspection Procedures to Eliminate Unqualified Products
The stable quality of high-quality hoses comes from strict quality inspection throughout the process. Standards Rubber has established 9 inspection procedures: raw material inspection before storage (to ensure materials meet standards), dimensional inspection after molding, performance inspection after vulcanization (tensile strength, elasticity), interface tightness inspection, temperature resistance test (high and low temperature cycle), corrosion resistance test (soaking in fuel/coolant), aging test, dynamic vibration test, and full appearance inspection before delivery. Inspection records are kept for each batch of products, which can be traced at any time. Small factories often omit inspection links and only conduct simple appearance inspections, resulting in unqualified products flowing into the market, which are prone to failures after buyers use them.
III. Long-Term Cost Accounting: The "Cost-Effectiveness" of High-Quality Hoses Far Exceeds the Initial Price Advantage
It is understandable for buyers to pay attention to the initial price, but they should also calculate the "whole-life cost"—although high-quality hoses are 20%-30% more expensive to purchase, their total cost is lower in the 3-5 year service cycle. The core advantages are reflected in three aspects.
1. Extended Service Life: Reduce Replacement Frequency and Lower Total Procurement Cost
Taking construction machinery leak off pipes as an example, ordinary hoses cost about $5 each, with a service life of 1 year, requiring 3 replacements in 3 years, totaling $15 in procurement costs; high-quality leak off pipes cost $8 each, with a service life of 3 years, requiring only 1 replacement in 3 years, totaling $8 in procurement costs, saving 46.7%. For a purchase quantity of 1,000 pieces, $7,000 in procurement costs can be saved in 3 years, and inventory management costs caused by frequent replacements are avoided.
2. Reduce Downtime Losses: Minimize Failure Risks and Ensure Production Efficiency
For logistics fleets, mining construction machinery and other users, the loss of one day of equipment downtime can reach thousands of dollars. The failure rate of high-quality hoses is less than 1%, while that of ordinary hoses exceeds 20%. A European logistics customer reported that after using the fuel hoses of Standards Rubber, the number of fuel hose failure shutdowns of its 50 trucks dropped from 3-5 times a month to once a year, saving hundreds of thousands of dollars in downtime losses alone.
3. Reduce Maintenance Costs: No Frequent Inspections, Lower Labor Expenses
Ordinary hoses require monthly inspections for leaks and aging, and a full replacement at least once a year, increasing labor maintenance costs; high-quality hoses only require regular inspections every quarter and replacement every 3-5 years.
IV. Conclusion: Choose the Right Materials and Processes to Achieve "Cost Reduction and Efficiency Enhancement" in Foreign Trade Procurement
The procurement of automotive rubber hoses should not fall into the short-sighted misunderstanding of "only looking at the unit price", but should establish the awareness of "whole-life cost"—materials determine service life, and processes ensure quality. With the core advantages of corrosion resistance, wear resistance and good sealing, high-quality hoses can fundamentally reduce replacement frequency and failure losses, and finally realize the optimization of total cost.
If you want to know the detailed parameters and process standards of hoses of different materials, or need to choose the most suitable product according to working conditions, please feel free to contact us.We will provide you with professional selection suggestions and cost analysis to help you avoid procurement traps.
