In turbocharging, vacuum braking, and industrial boost/vacuum systems, extreme pressure changes are an "invisible killer" for hoses. Ordinary silicone hose lacks sufficient boost and vacuum resistance, making it prone to bulging, collapsing, and leaking. This ultimately leads to equipment failures and downtime, causing direct losses across industries.
Passenger cars face high-frequency pressure fluctuations, commercial vehicles require zero leakage, and construction machinery endures combined high-temperature and high-pressure tests – boost and vacuum pain points vary by industry, and demands for silicone automotive hosesare getting higher.
The fundamental difference between reinforced silicone hose and ordinary silicone hose lies in its multi-layer composite reinforced structure. This is the key to its ability to resist pressure changes, while also offering temperature resistance and fatigue resistance for complex working conditions.
1. Anti-boost Expansion: Rigid Support Network to Prevent Bulging and Cracking

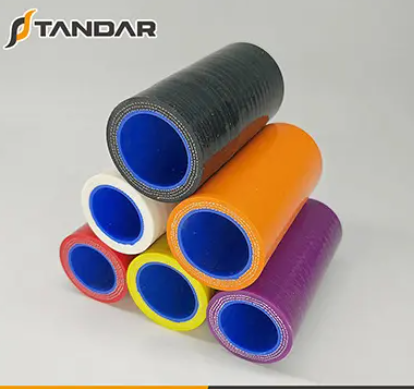

STD’s silicone intake hose and boost hoses feature multi-layer reinforcement layers (polyester, aramid, glass fiber, etc.), forming a "rigid support network" through integral vulcanization. When pressure builds up inside the hose, the reinforcement layer quickly disperses outward tension, limiting silicone hose deformation and maintaining a stable inner diameter. This prevents bulging and cracking, ensuring smooth fluid flow – ideal for passenger car turbocharging and construction machinery high-load boost scenarios.
2. Anti-vacuum Collapse: Composite Structure Enhances Rigidity to Prevent Flattening and Blockage
For silicone vacuum hose and vacuum brake hoses, it uses high-density composite of reinforcement and silicone layers to boost overall hose rigidity. When vacuum negative pressure forms inside the hose, the composite structure counteracts inward suction, preventing the hose from flattening and blocking. This meets the "zero collapse" requirements of commercial vehicle vacuum braking and industrial precision vacuum systems.
3. Adapting to High-Frequency Pressure Changes: Fatigue-Resistant and Non-Separating
In passenger car turbocharging and industrial pulse boost systems, hoses must withstand frequent alternating boost and vacuum. Reinforced silicone hose uses an integral vulcanization process for strong interlayer bonding and excellent fatigue resistance. It can endure high-frequency fluctuations long-term without interlayer separation or aging, lasting over 30% longer than ordinary silicone hoses.
4. Synergistic High-Temperature Protection: Temperature-Resistant, Stable Pressure Performance
Silicone itself is temperature-resistant, and uses high-temperature resistant materials (aramid, glass fiber) for the reinforcement layer. This allows reinforced silicone coolant hoses/silicone intake hose to maintain stable reinforcement structure even at high temperatures, without reduced pressure resistance due to heat softening. It perfectly adapts to "high temperature + boost/vacuum" composite working conditions near engine compartments and construction machinery engines.
We offer targeted solutions, with all products available in stock or custom-made to fit mainstream equipment.
1. Passenger Car Turbocharging: Narrow Space + High-Frequency Pressure Fluctuations + 80℃~220℃ High Temperature
￮ Custom 15°/45°/90° elbows fit narrow corners without splicing, reducing leakage points;
￮ Temperature resistance of -54℃~+220℃, resistant to high-frequency boost, with color-coded design for easy later identification;
￮ Can be paired with silicone coolant hoses/5 8 silicone heater hose for one-stop matching of turbocharging and cooling systems.
2. Commercial Vehicle Vacuum Braking + Turbocharging: Zero Leakage + ≥1.2MPa High Boost + Long-Term High Load
￮ Glass fiber reinforced vacuum hose offers zero leakage and zero collapse under -0.1MPa vacuum, ensuring braking safety;
￮ Aramid reinforced intake hose withstands ≥2MPa boost, supporting custom 10m joint-free length to reduce leakage;
￮ Temperature resistance of -54℃~+220℃, with no attenuation during long-term high-load operation.
3. Construction Machinery/Ships: 200℃+2MPa High Temperature & Pressure + Dust/Vibration + Corrosive Media
￮ Aramid reinforcement layer withstands ≤3MPa boost and -54℃~+260℃ temperature, handling high temperature and pressure;
￮ Fluorosilicone lining resists seawater, oil, and corrosion; outer sheath enhances wear and vibration resistance for harsh environments;
￮ Can be paired with silicone radiator hose/silicone coolant hoses to fit the linkage of cooling and boost systems.
No professional knowledge needed – just confirm 5 key details to find the perfect silicone automotive hoses for your working conditions. STD engineers also offer free guidance if you’re unsure.
Step 1: Confirm Maximum Boost Pressure/Vacuum Degree
Low boost (≤1.2MPa), conventional vacuum (≥-0.08MPa): Choose polyester reinforced (cost-effective for passenger cars and light commercial vehicles);
High boost (≥1.2MPa), extreme vacuum (-0.1MPa): Aramid reinforced for boost hoses, glass fiber reinforced for vacuum hoses.
Step 2: Match Operating Temperature
Conventional temperature (≤220℃): Polyester/glass fiber reinforced sufficient;
High temperature (220℃~260℃): Must choose aramid reinforced.
Step 3: Consider Transmission Medium
Gas/water media (air, coolant): Ordinary reinforced models (e.g., silicone intake hose/5 8 silicone heater hose);
Oil/seawater/chemical media: Fluorosilicone lined reinforced models for corrosion protection.
Step 4: Adapt to Installation Layout
Straight sections: Straight reinforced silicone hose;
Corner sections: Custom 15°/45°/90° silicone elbows (no splicing, reduced leakage);
Reducing connections: Reducing reinforced silicone hose to fit different caliber interfaces.
Step 5: Confirm Dimensions
silicone vacuum hose: Conventional inner diameter 2mm-19mm (full specifications in stock, custom available);
Boost/cooling hoses: Conventional inner diameter 16mm-76mm (large-caliber and thick-walled custom available);
Unsure? Request 1-2m samples for testing before bulk purchase.
Whether you need silicone intake hose for passenger car turbocharging, silicone vacuum hose for commercial vehicle vacuum braking, or corrosion and high-temperature resistant reinforced silicone hoses for construction machinery, STD has precise solutions.
If you’re facing hose failure issues, visit the Shijiazhuang Standards Rubber Products Co., Ltd official website https://www.stdrubberhose.com/ to contact us for free working condition analysis and selection plans. You can also request free sample testing!
