1. Market Size and Growth Drivers
The injector‑only segment accounted for about US $13.3 billion in 2024, also growing at around 6 % per year. The primary catalysts are the demand for higher engine output and the need to improve fuel‑combustion efficiency.
Forecasts for 2025‑2029 suggest the total market will surpass US $100 billion, with high‑pressure CR (> 250 bar) and electronic fuel injection (EFI) taking an increasingly larger share, thereby pulling up the demand for associated components such as fuel‑return pipes, silicone hoses and quick‑connect couplers.

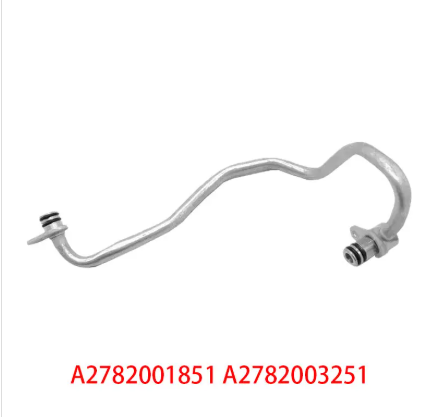

A2782001851A2782003251 Auto Engine Cooling System RadiatorHose
920-50-010 High-Performance Pneumatic QuickConnect Fittings

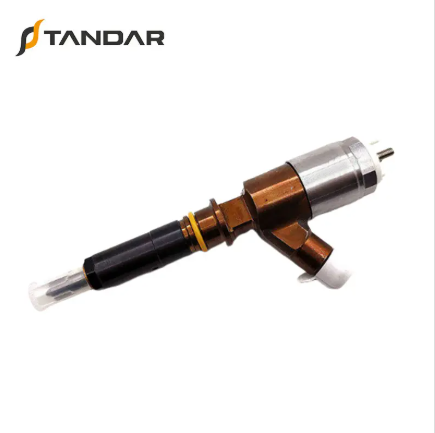

Diesel Injector 282-0490 292-3780 306-9380 306-9390310-9067

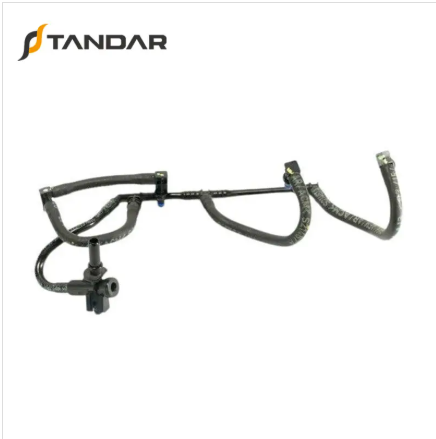

166713701R Leak-Free Fuel Return Line forRENAULT
2. OEM vs. ODM
OEMs (Original Equipment Manufacturers) – Global vehicle makers such as Toyota, Ford and Volkswagen prefer suppliers that hold SAE J200 / ASTM D2000 certifications. These standards guarantee that rubber and hose materials meet the required oil‑resistance, heat‑resistance and durability specifications demanded by rigorous automotive quality systems.
ODMs (Original Design Manufacturers) – Chinese suppliers leverage flexible production capacity and cost advantages to provide a “one‑stop” portfolio that includes fuel injectors, fuel‑return pipes, silicone hoses and quick‑connect couplers.
This dual‑track model enables OEMs to retain core technology (e.g., high‑pressure injector internals) while outsourcing non‑core components (hoses, couplers) to ODMs, creating a “core‑in‑house + peripheral‑outsourced” ecosystem that balances performance, cost and supply‑chain resilience.
3. Environmental Compliance and Material Innovation
Recyclable Materials – Traditional silicone elastomers are difficult to recycle. Recent developments in metal‑catalyst‑free, recyclable silicone elastomers use water‑sensitive siloxane cross‑links that can be chemically reclaimed with low energy input. The reclaimed material retains mechanical properties comparable to virgin silicone, opening a viable circular‑economy pathway for fuel‑system hoses.
High‑Temperature Durability – Modern silicone hoses now operate safely from ‑100 °F to +500 °F (‑73 °C ~ 260 °C), far exceeding the performance of conventional rubber hoses (‑30 °F ~ +200 °F). This temperature envelope allows hoses to be routed through engine‑bay hot spots such as turbo‑charger exhaust manifolds while maintaining flexibility and sealing integrity, thereby extending service life and reducing replacement frequency.
Standardization – Compliance with SAE J200 (ASTM D2000) requires clear designation of material type, class and hardness (EO – oil‑resistance, F – low‑temperature resistance). Products that meet these specifications can sustain pressures above 150 bar with zero leakage, satisfying the stringent sealing requirements of the EU Vehicle Emissions Directive.
4. Key Technological Trends
Trend | Impact on the System | Representative Technologies / Products |
|---|---|---|
High‑Pressure Common‑Rail (> 250 bar) | Necessitates stronger fuel‑return pipes and high‑temperature‑resistant silicone hoses | Stainless‑steel‑lined, composite‑sheathed return pipes rated to 150 bar |
Electronic Fuel Injection (EFI) | Raises requirements for electrically insulated, leak‑proof quick‑connect couplers | Polymer‑based quick‑connects with high‑strength O‑rings |
Recyclable Silicone Elastomers | Enables closed‑loop material cycles, reduces raw‑material consumption | Metal‑catalyst‑free siloxane cross‑linked elastomers |
Smart Monitoring | Embedding pressure/temperature sensors in return pipes provides real‑time leak detection | Low‑power pressure‑sensor modules integrated into pipe walls |
5. Case Study: Global Delivery
R&D Phase – A Chinese ODM partnered with a European OEM to develop a new return‑pipe for 250 bar CR systems. The pipe uses an SAE J200 M2 BG 617 B14 EO14 F17 material blend, guaranteeing oil‑resistance, heat‑resistance and pressure‑rating compliance.
Prototype Validation – Laboratory oil‑immersion aging at 200 °C for 70 hours produced a leakage rate of < 0.01 %·h⁻¹ and a hardness variation of ≤ ±5 Shore A, meeting the OEM’s quality gate.
Mass Production & Delivery – Quick‑connect couplers made from high‑strength polyamide with fluorocarbon O‑rings enable 30‑second assembly, cutting installation time by roughly 40 % compared with traditional threaded fittings. Over the first year, 1.2 million units were shipped worldwide.
After‑market Service – A take‑back program uses the recyclable silicone technology to chemically reclaim 85 % of used hoses within 48 hours, feeding the reclaimed material back into the production line and achieving a closed‑loop material flow.
6. Recommendations for Sustainable Development
Adopt Recyclable Elastomers – Design hoses from recyclable silicone to enable a “use‑collect‑reprocess” loop, targeting a material recovery rate above 80 %.
Standard‑Based Procurement – Insist on SAE J200 / ASTM D2000 certification for all rubber components, unifying material grades and reducing warranty‑related rework.
Digital Monitoring – Integrate low‑power pressure and temperature sensors into return pipes and high‑pressure hoses, linking data to cloud‑based analytics for proactive leak detection and predictive maintenance.
Eco‑Friendly Packaging – Switch to biodegradable packaging and minimize package volume to lower logistics‑related carbon emissions.
Cross‑Regional Collaboration – Leverage the OEM‑ODM dual‑track model: protect core injector technology while exploiting ODM cost efficiencies for peripheral components, thereby achieving low‑carbon, low‑cost global supply.
Conclusion
Fuel‑injector systems sit at the intersection of high pressure, intelligence and sustainability. By adhering to rigorous material standards (SAE J200), embracing recyclable silicone elastomers, and deploying digital monitoring, manufacturers can satisfy ever‑tighter emission regulations, boost product reliability, cut total ownership costs, and close the material loop. Aligning with these market and technology trends will secure a larger market share and stronger brand credibility in the increasingly competitive global automotive landscape.
